Fortinet FortiAP Cam-214B
IP-Based Video Security Cameras

FortiCamera

Sorry, this product is no longer available. Please Contact Us for a replacement.

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:


Complete Camera Coverage

Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, low-light night vision and 2-way audio, there's a FortiCam that fits every environment. Compact and unobtrusive, all FortiCams deliver crisp, high-resolution HDTV-quality images to the FortiRecorder NVR, either continuously or triggered by a range of events, including motion and/or audio detection.

Easy to Set Up, License-Free

With FortiCameras, installation is a breeze. Both cameras support PoE, eliminating the need for AC power. Just connect them to the FortiRecorder network via a PoE switch and you're up and running. No software installation, no patches and no per-camera fees.

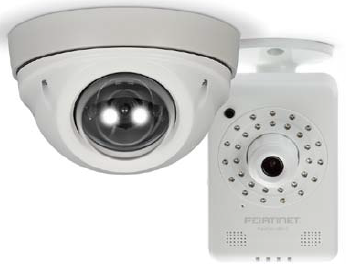

FortiCam-MB13

Discreet and compact, the FC-MB13 indoor camera fits anywhere. But don't let its size fool you - this camera can see in the dark and detect motion or audio. With 30 built-in infrared LED bulbs, it can capture events up to 50 feet away at night. With DI/DO for external alarm and sensor devices.

FortiCam-20A

Vandal-proof (IK10), weatherproof (IP67) and motion-detecting, the FCM-20A is a solid but subtle powerhouse that's great for securing your perimeter but still looks unobtrusive indoors.

The Power to See Everything: the Complete Video Security Solution

Combined with the FortiRecorder NVR, FortiCameras give you everything you need for complete facility video security.

  • Scheduled and manual recording
  • Motion detection and continuous recordings
  • Snapshot notifications and alerts
  • Web-based interface (no software installation required)
  • Camera live view and video playback
  • Event monitor with timeline
  • RADIS, LDAP, SNMP and remote data storage support for flexible network integration

Features:


Features Benefits
Continuous or event-based surveillance Capture everything or capture selectively based on events including motion detection, sound detection or scheduled times.
Clear high-definition visuals, even in the dark Your security footage won't be much use if you can't see what's going on. HDTV-quality and advanced low-light and infrared options ensure that you can see the details.
Auto-discovery by FortiRecorder NVRs Set up is a snap: plug into FortiRecorder network and the rest is automatic.

Specifications:


Model FORTICAM-MB13 CAMERA FORTICAM-20A CAMERA
  FortiCamera FortiCamera
Hardware Specifications
Format Indoor, infrared night vision Indoor/outdoor, vandal-proof, fixed dome
Sensor Type 1/2.5" CMOS 1/2.5" CMOS
Iris F1.6 F1.6
Focal Length f = 4 mm f = 4 mm
View Angle H:50° V:40° D:62° H:40° V:32° D:52°
Pan / Tilt / Rotation - +-35° / 0-90° / +-180°
IRLED / IRC 15m / yes - / -
Streaming Protocol RTSP / HTTPS RTSP / HTTPS
Video Compression H.264 H.264
Image Resolution 1280 x 1024 at 30 frames per second
640 x 512 at 30 frames per second
320 x 256 at 30 frames per second
1280 x 1024 at 30 frames per second
640 x 512 at 30 frames per second
320 x 256 at 30 frames per second
Audio Built-in mic and speaker
Dimensions
Height x Width x Length (in) 4.9 x 6.4 x 6.4 2.1 x 4.3 x 4.3
Height x Width x Length (mm) 125 x 163 x 163 53.3 x 109 x 109
Weight 1.04 lbs (470 g) 1.02 lbs (460 g)
Environment
Power Required PoE (802.3af) PoE (802.3af)
Power Consumption (AVG) 6.4 watts 5.5 watts
Operating Temperature 32-122°F (0-50°C) -4-122°F (-20-50°C)
Humidity 10-80% non-condensing 10-80% non-condensing
Compliance
  FCC Class B, CE Mark FCC Class B, CE Mark, Vandal-proof (IK10), weatherproof (IP67)

Documentation:

Download the Fortinet FortiCamera Series Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Fortinet FortiAP Cam-214B Series
Fortinet 24x7 FortiCare Contract
FortiAPCam-214B 1 Year 24x7 FortiCare Contract
#FC-10-P0214-247-02-12
List Price: $338.00
Our Price: $305.00
