Fortinet FortiGate 80D
High Performance UTM for Small Networks

Hardware:

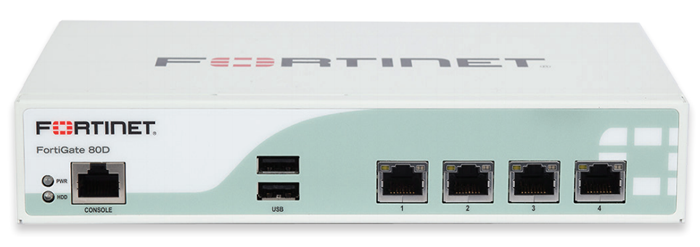

FortiGate 80D

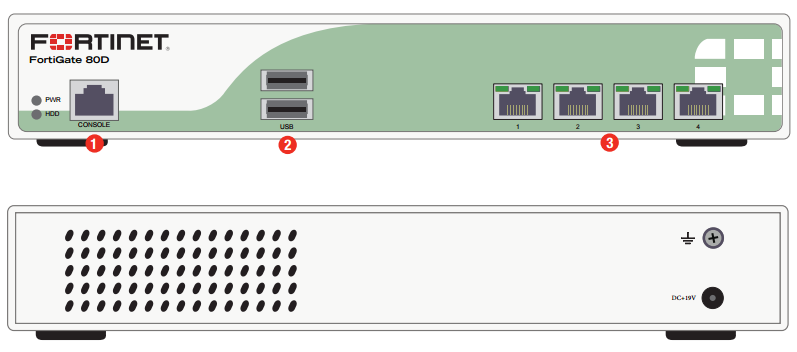

Interfaces

1. Console Port
2. 2x USB Ports
3. 4x GE RJ45 Ports

Install in Minutes with FortiExplorer

The FortiExplorer wizard enables easy setup and configuration coupled with easy-to-follow instructions. FortiExplorer runs on both Microsoft Windows and Mac OS X computers as well as popular mobile devices like Android and iOS. Using FortiExplorer is as simple as starting the application and connecting to the appropriate USB port on the FortiGate. By using FortiExplorer, you can be up and running and protected in minutes.

Wireless and 3G/4G WAN Extensions

The FortiGate supports external 3G/4G modems that allow additional or redundant WAN connectivity for maximum reliability. The FortiGate can also operate as a wireless access point controller to further extend wireless capabilities.

Compact and Reliable Form Factor

Designed for small environments, you can simply place the FortiGate 80D on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

• A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
• Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
• Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
• Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
• Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
• Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

• Real-time Updates - 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
• Security Research - FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
• Validated Security Intelligence - Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

• Enhanced Support - For customers who need support during local business hours only.
• Comprehensive Support - For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
• Advanced Services - For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
• Professional Services - For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Fortinet Support Offerings

	8x5 Enhanced Support	24x7 Comprehensive Support	PRMA Next Day Delivery	PRMA 4 Hour On-Site Parts Delivery	PRMA 4 Hour On-Site Engineer
Web Access
On-line documentation	24x7	24x7	24x7	24x7	24x7
Product regisration	24x7	24x7	24x7	24x7	24x7
Technical Support
Phone	8x5	24x7	24x7	24x7	24x7
Web	8x5	24x7	24x7	24x7	24x7
Chat	8x5	24x7	24x7	24x7	24x7
Software Support
Firmware downloads	24x7	24x7	24x7	24x7	24x7
Hardware Support
	Return and Replace Hardware Replacement Site address needs to be confirmed before purchase Customer returns faulty device to Fortinet TAC based in Sydney Signed acknowledgement of replacement hardware delivery	NBD Advanced Hardware Replacement NBD replacement is only available for NSW, QLD, VIC & ACT For WA, SA, NT & TAS, delivery is within 3-5 business days Site address needs to be confirmed before purchase RMA needs to be verified by the TAC by 2pm Sydney time Signed acknowledgement of replacement hardware delivery Customer returns faulty device to Fortinet TAC based in Sydney within 30 days after receipt of the replacement unit	Premium NBD Replacement NBD is available for all states in Australia Site address needs to be confirmed before purchase RMA needs to be verified by the TAC by 3pm Sydney time for SLAs to be guaranteed Customer returns faulty device to Fortinet TAC based in Sydney within 30 days after receipt of the replacement unit	Premium 4H Same Day Replacement Parts only, delivered 24x7x4 Hardware is delivered within 4 hours of RMA verification by the TAC Site address needs to be confirmed before purchase Signed acknowledgement of replacement hardware delivery Customer returns faulty device to Fortinet TAC based in Sydney within 30 days after receipt of the replacement unit	Premium 4H Same Day Replacement with Engineer RMA parts delivered by an installation engineer 24x7 Site address needs to be confirmed before purchase Hardware is delivered within 4 hours of RMA verification by the TAC Engineer will exchange defective hardware with replacement part Engineer will restore firmware and IP address Engineer will not restore custom configuration file or customer data Engineer will remain on-site until customer is able to access the unit to restore configuration files Mutual agreement of service delivery completion Engineer will leave the site with the defective part
Replacement turnaround	Shipped within 3 Business Days of receipt of the defective hardware	NBD for supported states, 3-5 business days for other states	NBD	4 Hour Same Day	4 Hour Same Day

Specifications:

FortiGate 80D Specifications
Hardware Specifications
GE RJ45 Ports	4
USB Ports	2
Console (RJ45)	1
Internal Storage	16 GB
System Performance
Firewall Throughput	1.3 Gbps
Firewall Latency (64 byte UDP packets)	90 μs
Firewall Throughput (Packets Per Second)	255 Kpps
Concurrent Sessions (TCP)	1.5 Million
New Sessions/Second (TCP)	22,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	200 Mbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	1,000
SSL-VPN Throughput	130 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	200
IPS Throughput (HTTP / Enterprise Mix) 1	800 / 245 Mbps
SSL Inspection Throughput 2	210 Mbps
Application Control Throughput 3	300 Mbps
NGFW Throughput 4	210 Mbps
Threat Protection Throughput 5	190 Mbps
CAPWAP Throughput 6	1.1 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	32 / 16
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.61 x 8.27 x 5.24
Height x Width x Length (mm)	41 x 210 x 133
Weight	2.3 lbs (1.1 kg)
Form Factor	Desktop
Environment
Power Required	100-240V AC, 50-60 Hz
Maximum Current	110 V / 1.2 A, 220 V / 1.2 A
Power Consumption (Average / Maximum)	18 / 22 W
Heat Dissipation	74 BTU/h
Operating Temperature	32-104°F (0-40°C)
Storage Temperature	-31-158°F (-35-70°C)
Humidity	20-90% non-condensing
Operating Altitude	Up to 16,404 ft (5,000 m)
Compliance
Safety	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Rackmount:

The RM-FR-T8 is a rack mount kit for the FortiGate 80D, FortiADC 100E, FortiMail 60D, FortiVoice Enterprise 100E and FortiWeb 100D. The RM-FR-T8 mounts the unit with all the connections towards the front of the rack mount kit, the unit is 1U high. The rack mount kit matches the color of the Fortinet product.

Specifications
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	44 x 482 x 217mm
Number of connections brought to the front	N/A
Console port to the front	Yes
Cables	None
Couplers	None
Supported Models	- FortiGate 80D - FortiMail 60D - FortiADC 100E - FortiVoice Enterprise 100E - Fortiweb 100D
What's in the box	- 1x FortiRack - Assembly materials - Installation guide
EAN	8718868918031
UPC	852754006032

Documentation:

Download the Fortinet FortiGate 80D Series Datasheet (PDF).
