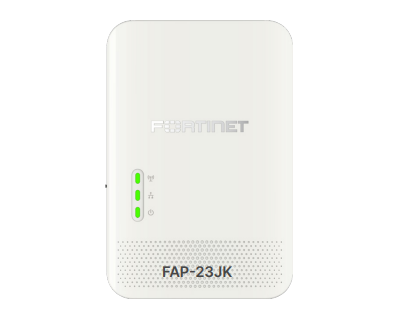

Fortinet Fortiap FAP-23JK
Enterprise-Grade Protection for Smaller Networks

Fortinet Fortiap FAP-23JK


Fortinet Products
Fortiap FAP-23JKBack to top
Indoor AP - 5.x2 Dual band Wi-Fi + x2 6GHz band Wi-Fi + x1 BLE/ ZigBee antenna, PCB 2.4/5GHz dual band antenna: 4.0 dBi for 2.4GHz, 4.4 dBi for 5 GHz, BT/BLE, 1x RS-232 RJ45 Serial Port.
#FSR-216F-POE
List Price: $9,831.00
Our Price: Request a Quote
Licenses Back to top
UTP Services (G Series)
FC-10-APGIS-768-02-DD FortiAP G Series FortiGuard Universal Threat Protection Subscription Service License for Application control and Web filtering modules.
Applicable to FortiGate or FortiCloud managed G-Series or later FortiAP family Access Points.
#FC-10-APGIS-768-02-DD
Our Price: Request a Quote
Get a Quote
FortiEdge Cloud
FC-10-90AP1-639-02-DD FortiEdge Cloud FortiAP Management License
Includes: Full suite of FortiAP Management Features, 1 year Log Retention, FortiCare Premium (Note, FortiCare only applicable when used with FortiEdge Cloud).
#FC-10-90AP1-639-02-DD
Our Price: Request a Quote
Get a Quote
Accessories Back to top
Gigabit PoE Injector GPI-115
1-port Gigabit PoE power injector, 802.3af 15.4 W, 10/100/1000.
#GPI-115
Our Price: $157.00
Gigabit PoE Injector GPI-130
1-port Gigabit PoE power injector, 802.3at up to 30 W.
#GPI-130
Our Price: $318.00
Gigabit PoE Injector GPI-145
1-port Multi-Gigabit PoE power injector, 802.3bt up to 60 W.
#GPI-145
Our Price: $554.00
Power Adapter SP-FAP400-PA
AC power adapter 12v, 3.0A - 36W for FAP-431G, FAP-433G, and FAP-831F.
#SP-FAP400-PA
Our Price: $74.00
Power Adapter SP-FAP200-PA
AC power adapter 12v, 2.5A - 30W for FAP-221E.
#SP-FAP200-PA
Our Price: $74.00
Power Adapter SP-FAP23J-PA-10
AC power adapter 48v, 1.04A - 50W without power cord for FAP-23JF.
#SP-FAP23J-PA-10
Our Price: $1,174.00
Power Adapter SP-FAP250-PA-10
AC power adapter 12v, 4.0A - 48W with Extended operating temp 0°C - 50°C with US and EU plugs for FAP-431G, FAP-433G, FAP-441K, and FAP-443K.
#SP-FAP250-PA-10
Our Price: $958.00
Desktop Stand FAP-MNT-WJ-20
Desktop stand for FAP/FAP-C/FAP-U wall jack style APs. Converts wall mounting hardware included with unit to desktop mounting - 20 pack.
#FAP-MNT-WJ-20
Our Price: $600.00
Desktop Stand FAP-DESK-JK-10pk
Desktop stand for FAP23JK/FAP23JF wall jack style APs. Converts wall mounting hardware included with unit to desktop mounting - 10 pack.
#FAP-DESK-JK-10pk
Our Price: $462.00

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Live Demo! Click here to load

Overview:

FortiGate, FortiEdge Cloud, or SASE-managed access points

FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiEdge Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.

Use Cases

Campus

A single building with multiple floors, or a corporate or education campus with a group of large buildings.

  • High-capacity designs including Dual 5GHz and tri-band with Wi-Fi 6E allow a maximal number of client devices to attach to the network at the same time without over-air congestion
  • Complete NOC functionality with network visibility and AIOps simplify a complex network deployment into a solution manageable by IT teams of any size

Branch Office / SD-Branch

A highly distributed number of small sites, often with no on-site IT

  • Built in NAC functions* allow secure onboarding of devices at remote locations where IT doesn’t have reliable visibility
  • Management orchestration with zero-touch deployment allows for quick and easy rollouts without the need for skilled installers at each site

Micro Branch

Ultra small sites that still fall under IT’s responsibility.

  • Can act as a SASE endpoint as a foundation for zero-trust network access (ZTNA)
  • Simple management and provisioning through FortiSASE interface

Remote Workers

A remote AP installed at a worker’s home or at micro-branch office space.

  • Split tunneling allows local traffic to remain local while sending other traffic to the data center for inspection when needed
  • Desktop mounting options for wall-plate models allow the use of Ethernet as well as Wi-Fi connectivity while leveraging the same secure tunnel

SMB

Single site or small collection of sites with limited IT resources.

  • Built-in NAC functions* bring security to the wireless network with no need to install and manage additional products
  • Network and security convergence decreases management overhead while keeping the network secure

Features:

FortiAP 23JK

These enterprise class Wi-Fi 7 indoor wall plate AP provide three radios and two spatial streams. These access points support the 6 GHz band and have one 10 Gigabit Ethernet and three 1 Gigabit Ethernet ports and one port supports the PSE OUT. The APs can provide 24/7 background scanning across all bands while still providing access on 2.4 GHz, 5 GHz, and 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and location applications.

Note: For FAP-23JK, use of the 6GHz band is subject to regional regulatory authority approval.

Three-Radio 2.4GHz + 5GHz + 6GHz + Scan | 4 Wi-Fi Antennas + 1 BLE/ZigBee antenna

2x2 MU-MIMO | Up to 688 Mbps + 2.88 Gbps + 5.76 Gbps data rate

Specifications:


FortiAP FAP-23JK
Hardware
Type Indoor AP
Number of Radios 3 Wi-Fi + 1 BLE
Number of Antennas 5 (2x dual band Wi-Fi, 2x 6GHz Wi-Fi, 1x BLE/ZigBee)
Antenna Type & Peak Gain 2.4GHz: 4.0 dBi
5GHz: 4.4 dBi
6GHz: 3.6 dBi
BLE: 3.7 dBi
Frequency Bands 2.4GHz: 2.4–2.484GHz
5GHz: UNII-1 to UNII-4
6GHz: UNII-5 to UNII-8
Maximum Data Rate 2.4GHz: up to 688 Mbps
5GHz: up to 2.882 Gbps
6GHz: up to 5.765 Gbps
Interfaces WAN1: 1x 100M/1000M/2.5G/5G/10G RJ45 (802.3bt PoE)
LAN: 3x 1G RJ45 (LAN3 PoE PSE)
RJ-45 Pass-through (in/out)
RS-232 RJ45 Serial Port
PoE WAN1: 802.3bt PoE (input)
LAN3: 802.3af PoE (PSE out)
Wireless Features
SSID Capacity Up to 8 per radio (7 if background scanning enabled)
Authentication WPA, WPA2, WPA3 with 802.1x or PSK, WEP, Captive Portal, MAC filtering
Per Radio Client Capacity Up to 512 clients per radio
Advanced 802.11 Features OFDMA, BSS Coloring, UL/DL MU-MIMO, Target Wake Time (TWT)
Wireless Monitoring Rogue Scan, WIPS/WIDS, Packet Sniffer, Spectrum Analyzer
Environment
Operating Temperature 32°F to 113°F (0°C to 45°C)
Storage Temperature -22°F to 158°F (-30°C to 70°C)
Humidity 5% to 90% non-condensing
Power Consumption 31W (PoE in)
19W (PoE in, no PSE out)
27.25W (DC supply)
Dimensions
Size (inches) 7.08 x 4.72 x 1.57
Size (mm) 180 x 120 x 40
Weight 1.15 lbs (0.52 kg)
Package Weight 1.85 lbs (0.84 kg)
Warranty
Fortinet Warranty Limited Lifetime Warranty

Documentation:

Download the Fortinet Fortiap FAP-23JK Series Data Sheet (PDF).
