Fortinet FortiCam FD51
Video Security IP Camera

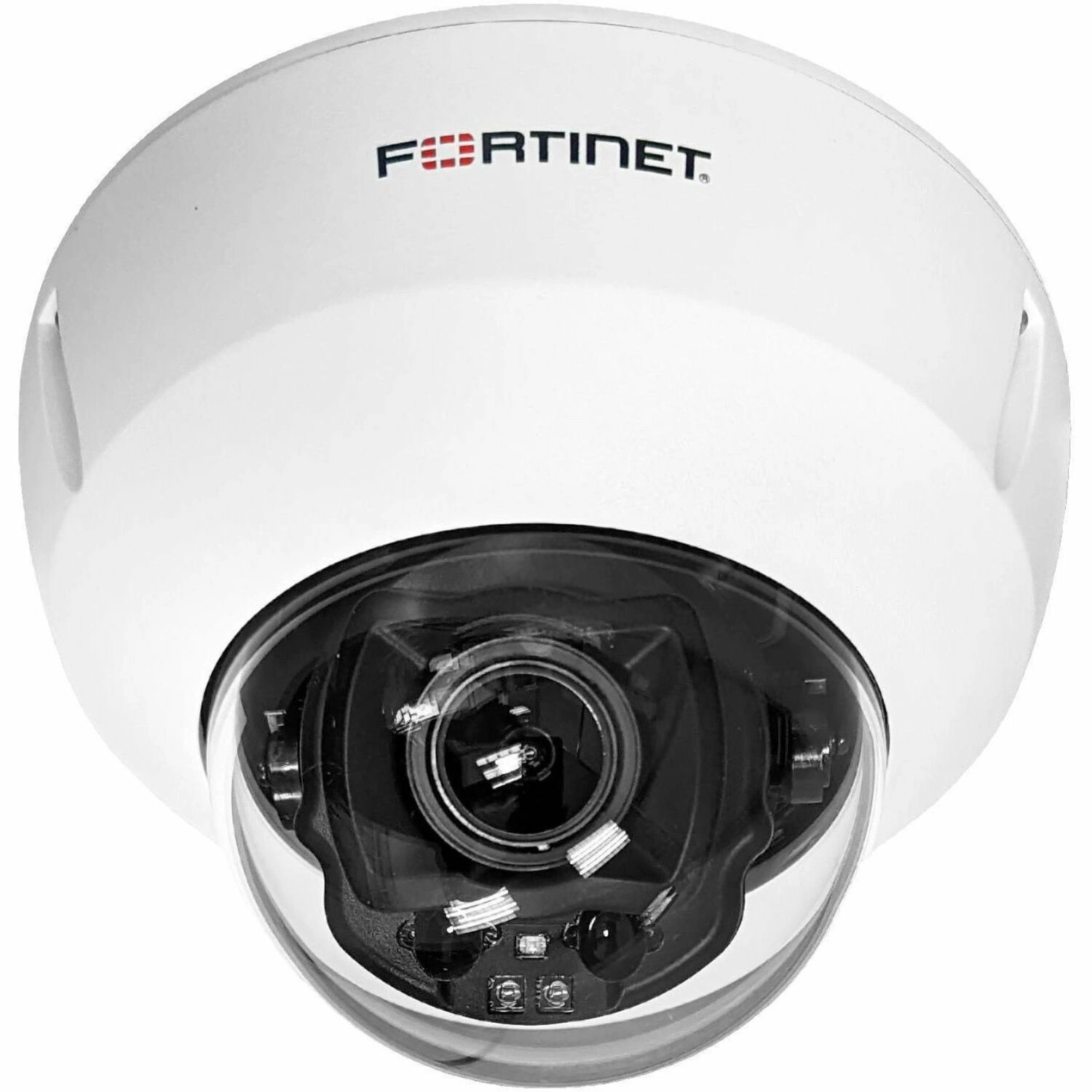

FortiCam FD55-CA
Fortinet Products
FortiCam FD51 Cloud Camera
FortiCam FD51 Camera FCM-FD51 5 mega-pixel fixed dome IP camera, 30m IR LED, 2.8mm fixed lens, 1x 10/100 port with 802.3af PoE, audio, HDR, DIO, vandal proof, indoor/outdoor use, rated IP66.
#FCM-FD55-CA
List Price: $1,102.00
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, low-light night vision, fixed and motorized zoom lenses, and two-way audio, there’s a FortiCam for every environment. All FortiCams deliver crisp, high-resolution HDTV-quality images to any FortiRecorder NVR, either continuously or triggered by a range of events, including motion and/or audio detection.

Easy to set up, license-free

With FortiCameras, installation is a breeze. They support PoE, eliminating the need for AC power. Just connect the camera to the FortiRecorder network via a PoE switch and you’re up and running. No software installation, no patches and, unlike using third-party cameras, no license fees.

Building blocks for scalable IP video solutions

FortiCameras are completely integrated with FortiRecorder and the powerful FortiCentral and mobile clients. All components complement each other to form a scalable video surveillance installation from small retail to large campus sites.

FortiCameras are your eyes into Fortinet video analytics solutions including face recognition and object detection.

  • Scheduled and manual recording
  • Motion detection and continuous recordings
  • Snapshot notifications and alerts
  • SD card edge recording
  • Camera live view and video playback
  • Event monitor with timeline
  • RADIUS, LDAP, SNMP, and remote data storage support for flexible network integration
  • Centralized management, maintenance, and monitoring
  • Web-based interface
  • Powerful Windows client FortiCentral
  • Mobile access on iOS and Android

Highlights:

For those who prefer simple camera mounting and the clearest image quality, the FortiCamera FB50 bullet style security camera is ideal for you. Its modern design with hidden LEDs, a sunshield, and SD card support up to 128 GB, is easily installed in a 90-degree position for corridors. Optical performance of the 4x motorized zoom and autofocus lens captures people and objects without loss of details. This camera delivers this excellent performance with 5 MP low light sensor and support for true shutter WDR. The offering is rounded off with ratings for IP66 and IK10 as well as a junction box accessory for EMT installations.

Specifications:

MODEL FB50 FE120B FD50 FD51 CD51 CD55 MC51
Platform FortiRecorder FortiRecorder FortiRecorder FortiRecorder FortiRecorder FortiRecorder FortiRecorder
Format Full bullet Fisheye Fixed dome Fixed dome Fixed dome Fixed dome Mini Cube
Installation Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor/Outdoor Indoor
Sensor Resolution 5 MP 12 MP 5 MP 5 MP 5 MP 5 MP 5 MP
Image Sensor 1/2.7 inch low light CMOS 1/2.3 inch progressive CMOS 1/2.7 inch low light CMOS 1/2.7 inch Progressive CMOS 1/2.8 inch low light CMOS 1/2.8 inch low light CMOS 1/2.8 inch low light CMOS
Iris Fixed Fixed Fixed Fixed Fixed DC-Iris Fixed
Aperture F1.4 (W), F2.8 (T) F2.0 F1.4 (W), F2.8 (T) F1.6 F2.0 F1.6 (W), F3.3 (T) F2.0
Zoom 4x 4x Optical 4x Optical
Focal Length 2.8–12 mm 1.22 mm 2.8–12 mm 2.8 mm 2.8 mm 2.7–13 mm 3.16 mm
View Angle H: 30°~90°
V: 23°~65°
D: 38°~115°
Ceiling: 360°
Wall: 180°
Table: 360°
H: 30°~90°
V: 23°~65°
D: 38°~115°
H: 111°
V: 59°
D: 133°
H: 95°
V: 72°
D: 118°
H: 29°~99°
V: 22°~71°
D: 35°~132°
H: 102°
V: 72°
D: 132°
Minimum Illumination 0.035 Lux (color)
0.005 Lux (B/W)
0.1 Lux (color)
0.005 Lux (B/W)
0.035 Lux (color)
0.005 Lux (B/W)
0.055 Lux (color)
0.005 Lux (B/W)
0.05 Lux (color)
0.01 Lux (B/W)
0.03 Lux (color)
0.01 Lux (B/W)
0.05 Lux (color)
0.01 Lux (B/W)
Dynamic Range Shutter WDR (>120dB) Shutter WDR (>120dB) Shutter WDR (>120dB) Shutter WDR (>120dB) HDR (>80dB) HDR (>80dB) HDR (>80dB)
RTSP
Video Compression MJPEG/H.264/H.265 MJPEG/H.264/H.265 MJPEG/H.264/H.265 H.264/H.265 H.264/H.265 H.264/H.265 H.264/H.265
Audio Line in / out Built-in mic Built-in mic, line out Line in / out Built-in mic Built-in mic Built-in mic and speaker
Ethernet port 10/100 10/100 10/100 10/100 10/100 10/100 10/100
Digital Input / output 1/1 1/1 1/1 1/1 1/1 1/1 1/1
IR Illumination 30m 20m 30m 30m 20m+ (dimmable) 20m+ (dimmable) 8m+ (dimmable)
3D Noise Reduction
Dimensions (inches) 8.5 x 3.3 x 3.3 215 x 85 x 85 4.08 x 5.3 x 5.3 3.5 x 4.6 x 4.6 3.8 x 4.7 x 4.7 3.8 x 4.7 x 4.7 5.5 x 4.2 x 4.2
Dimensions (mm) 215 x 85 x 85 68 x 150 x 150 104 x 133 x 133 90 x 117 x 117 97 x 120 x 120 97 x 120 x 120 138 x 91 x 91
Weight 1.63 lbs (738 g) 1.55 lbs (701 g) 1.80 lbs (819 g) 1.24 lbs (562 g) 1.09 lbs (498 g) 1.09 lbs (498 g) 138 x 91 x 91
Power Over Ethernet 802.3af - Class 0 802.3at - Class 4 802.3af - Class 0 802.3af - Class 0 802.3af - Class 3 802.3af - Class 3 802.3af - Class 3
External Power DC12V
Power Consumption (Max) 12.95W 12.95W 12.95W 6.38W 12.95W 12.95W < 10W
Operating Temperature 14°F to 144°F
(-10°C to 60°C)
-4°F to 122°F
(-20°C to 50°C)
14°F to 144°F
(-10°C to 60°C)
-22°F to 144°F
(-30°C to 60°C)
-40°F to 122°F
(-40°C to 50°C)
-40°F to 122°F
(-40°C to 50°C)
14°F to 104°F
(-10°C to 40°C)
Humidity <90% noncondensing <90% noncondensing <90% noncondensing <90% noncondensing 5% to 90% noncondensing 5% to 90% noncondensing 5% to 90% noncondensing

Documentation:

Download the Fortinet FortiCamera Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.
