Fortinet FortiExtenderVehicle 212F
Industrial strength for secure networks

Fortinet FortiExtender 211F AM


Fortinet Products
FortiExtenderVehicle-212F
Rugged Broadband Wireless WAN Router for Vehicle and OT applications with 2x Dual SIM 3G/4G LTE CAT-12 M.2 Module (DL/ UL=600M/150Mbps) for EU/APEC,/LATAM Carriers. 1x GE WAN + 4x GE LAN RJ45 ports including 2x2 2.4/5GHz 802.11ac Wi-Fi and GPS/GNSS systems. External LTE antenna required (not included). Band28 Supported, but not Band14
#FEV-212F
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

FortiExtender ruggedized 5G/LTE gateways offer scalable, secure, and resilient connectivity for operational technology networks and enterprise networks with harsh deployment environments. Driven by Fortinet’s unique approach of Secure Networking, FortiExtender allows organizations business continuity, improved network availability while securing connectivity with wired broadband and cellular networks

From remote sites in harsh conditions, to factories, healthcare facilities, and fleet vehicles—FortiExtender ruggedized 5G/LTE gateways provide reliable broadband access to the internet and extends the value of the Fortinet Security Fabric to support fluid business operations dependent on remote device connectivity

  • Extends network edge into vehicle and harsh site deployments
  • Unifies 3G/4G LTE, 5G, and Wi-Fi in a single device
  • Dust and splash proof (IP64)
  • Ruggedized against extreme temperatures, shock, vibration, and humidity
  • Certified for a variety of deployment scenarios
  • Enables secure network fabrics with VxLAN extension
  • Cloud management and on-premises management options
  • Rich interface for multiple LAN, WAN, and console connections
  • Small form-factor for easy deployment and optimal cellular signal

Features:

Ruggedized for Any Deployment Scenario

FortiExtender rugged devices allow you to deploy the device in a vehicle or at a harsh site. The devices are protected against temperature extremes, shock, vibration, humidity, and provide ingress protection against dust and splash. In addition, FortiExtender ruggedized devices are certified for deployment in unique secnarios, such as rail deployments.

5G/LTE Wireless WAN

FortiExtender ruggedized devices support dual-SIM and dual-modem options, enabling up to four different ISPs for ultra-reliable connectivity. Dual-SIM models enable active/passive cellular for failover based on data plan, disconnects, signal strength, and link health, allowing you to balance connectivity quality and cost. Dual-Modem provides active/active cellular links for high-availability, traffic isolation, and load-balancing use cases.

LAN Connectivity

FortiExtender offers multiple LAN Ethernet ports to enable multiple connections at the Wireless WAN site. Ideal for High Availability (HA) pairs of FortiGates, each FortiGate can be directly connected to the FortiExtender. Either FortiGate can run in load-balancing or failover modes and receive WAN connectivity from the FortiExtender.

VxLAN Extension

You don’t need a FortiGate on site to deploy AI-powered security with your FortiExtender. Enhanced LAN Extension in FortiExtender creates a network fabric using VxLAN technology where you can extend the Layer 2 broadcast domain of a remote FortiGate to the standalone FortiExtender with no extra license needed. Depending on the FortiGate model*, Enhanced LAN Extension supports over 1000 FortiExtenders per firewall.

*Contact your Sales Engineer for specific details.

Private 5G/LTE (CBRS)

All FortiExtender 5G/LTE models support CBRS in either the form of LTE Band 48 or 5G N48. This allows FortiExtender to play a critical role in Private 5G/LTE deployments as a rapid secure uplink at the edge. When equipped with a Private 5G/LTE SIM card, FortiExtenders can also receive CBRS signal from Private 5G/LTE Access Points to deployed on Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), or as virtual LAN mobile zones in parking lots, pop-up tents, and more.

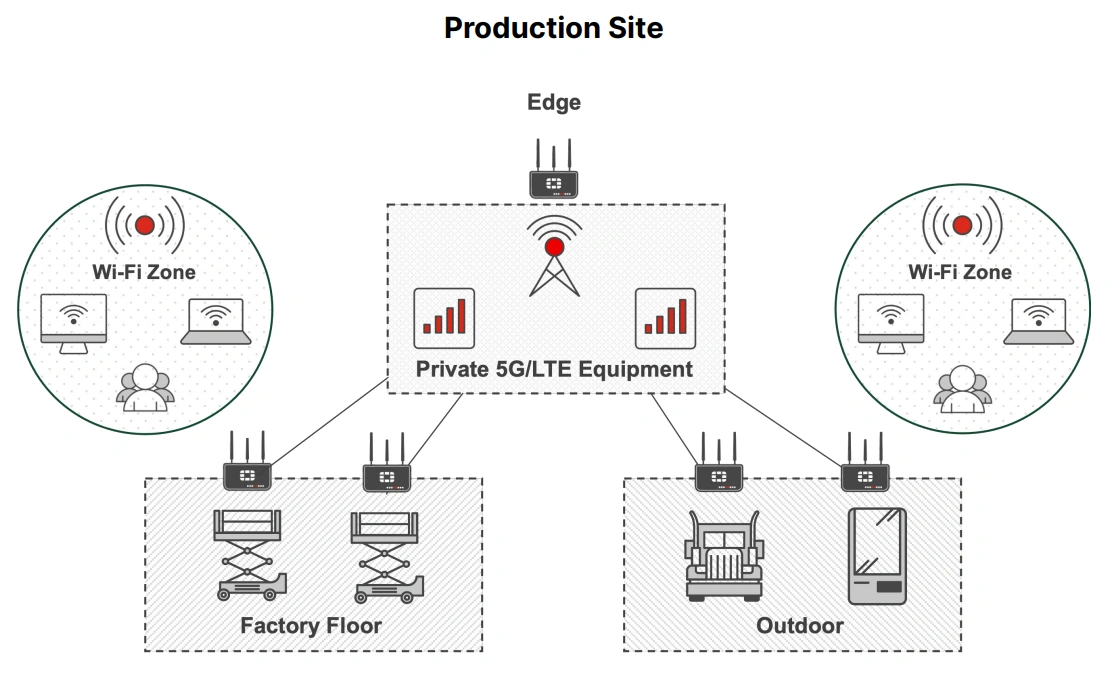

Deployment:

FEV-212F

Specifications:


Feature FEV-211F / FEV-211F-AM FEV-212F / FEV-212F-AM
Modem Support Internal (1x Modem) Internal (2x Modems)
Number of Antennas Vehicle LTE Antenna sold separately.
2x Wi-FI/1x BT antenna included.
Vehicle LTE Antenna sold separately.
2x Wi-FI/1x BT antenna included.
Power over Ethernet (PoE) Powered
Ethernet Ports 5 GE RJ45 Ports (WAN + LAN) 5 GE RJ45 Ports (WAN + LAN)
USB Ports 1 x USB 2.0 Type A 1 x USB 2.0 Type A
Bluetooth Maximum Transmit Power 10 dBm
Frequency 2.4 GHz
Maximum Transmit Power 10 dBm
Frequency 2.4 GHz
GPS Antenna Port
Wi-Fi 2x2 2.4/5GHz 802.11 a/b/g/n/ac wave2 Wi-Fi 2x2 2.4/5GHz 802.11 a/b/g/n/ac wave2 Wi-Fi
Mounting Options Wall mount for Vehicle/Desktop Wall mount for Vehicle/Desktop
Type Indoor/In-Vehicle Indoor/In-Vehicle
Dimensions (inches) 1.77 x 5.11 x 7.16 (not including antenna length) 1.77 x 5.11 x 7.16 (not including antenna length)
Dimensions (mm) 45 x 130 x 182 (not including antenna length) 45 x 130 x 182 (not including antenna length)
Weight 2.1 lbs (0.97kg) 2.1 lbs (0.97kg)
Power Required 7-36V DC for 12V/24V vehicle battery system 7-36V DC for 12V/24V vehicle battery system
Power Consumption (Average) 17.88W 17.88W
Power Consumption (Maximum) 22.74W 22.74W
Operating Temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Humidity 5% to 95% 5% to 95%
AT&T
PTCRB
AT&T FirstNet FirstNet Capable (LTE Only) FirstNet Capable (LTE Only)
Certifications (FCC) FCC Part 15B, 15C, 2.1091 FCC Part 15B, 15C, 2.1091
Certifications (IC) ICES-003, RSS-247, RSS-102 ICES-003, RSS-247, RSS-102
Certifications (CE) RR&TTE Directive 1999/5/EC, EN 300 328, EN 301 489, EN 301 893, EN 50385, EU Directive 2004/108/EC EMC, EU Directive 2006/95/EC LVD, EN 55022, EN 55024, EN 61000 RR&TTE Directive 1999/5/EC, EN 300 328, EN 301 489, EN 301 893, EN 50385, EU Directive 2004/108/EC EMC, EU Directive 2006/95/EC LVD, EN 55022, EN 55024, EN 61000
Certifications (CB) IEC/EN 62368-1 IEC/EN 62368-1
Ingress Protection IP64 IP64
Rolling Stock EN 50155 Class S1 EN 50155 Class S1
Shock/Vibration/Humidity MIL STD 810H, SAE J1455 MIL STD 810H, SAE J1455
IPsec VPN (Wired) 120 Mbps 120 Mbps
IPsec VPN (LTE/5G) 120 Mbps 120 Mbps
LAN-Extension (VxLAN over IPsec) 90 Mbps 90 Mbps
LAN-LAN Layer-2 Frames 930 Mbps 930 Mbps
LAN-WAN NAT Layer 3 packets 930 Mbps 930 Mbps
Max WAN Uplinks Supported 1 1

Documentation:

Download the FortiExtender Series Data Sheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Fortinet Products
FortiExtenderVehicle-212F
Rugged Broadband Wireless WAN Router for Vehicle and OT applications with 2x Dual SIM 3G/4G LTE CAT-12 M.2 Module (DL/ UL=600M/150Mbps) for EU/APEC,/LATAM Carriers. 1x GE WAN + 4x GE LAN RJ45 ports including 2x2 2.4/5GHz 802.11ac Wi-Fi and GPS/GNSS systems. External LTE antenna required (not included). Band28 Supported, but not Band14
#FEV-212F
Our Price: Request a Quote
FortiExtenderVehicle-212F FortiCare Premium Support
FortiExtenderVehicle-212F 1 Year FortiCare Premium Support
#FC-10-FG21F-247-02-12
List Price: $356.00
Our Price: Request a Quote
FortiExtenderVehicle-212F 3 Year FortiCare Premium Support
#FC-10-FG21F-247-02-36
List Price: $1,069.00
Our Price: Request a Quote
FortiExtenderVehicle-212F 5 Year FortiCare Premium Support
#FC-10-FG21F-247-02-60
List Price: $1,781.00
Our Price: Request a Quote
