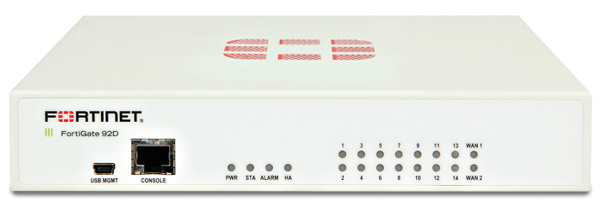

Fortinet FortiGate 92D
High Performance UTM for Small Networks
Sorry, this product is no longer available. Please Contact Us for a replacement.
Click here to jump to more pricing!
Overview:
The FortiGate/FortiWiFi 92D is compact, cost-effective, all-in-one security appliance that delivers Fortinet's Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.
High Performance Network Security
Built on the foundation FortiOS 5, the FortiGate/FortiWiFi 92D provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection including firewall, application control, IPS, VPN, and web filtering, all from one device that's easy to deploy and manage. With our FortiGuard® security subscription services you'll have automated protection against today's sophisticated threats.
Advanced Features
The FortiGate/FortiWiFi 92D offers beyond the industry's best firewall with the latest in Advanced Threat Protection including Sandboxing and anti-bot protection, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.
VDOMs on the FortiGate/FortiWiFi 92D let you segment networks to enable guest and employee access, or protect things like cardholder data. You get the flexibility to match your business needs and meet compliance standards like PCI and HIPAA.
With 16 GB of robust internal storage, the FortiGate/FortiWiFi 92D allows you to implement integrated WAN optimization and web caching to improve user production when securely accessing remote applications and documents.
Enterprise-Class Protection that's Easy to Deploy and Manage
- High performance UTM — firewall, VPN, IPS, application control, web filtering, antivirus, antispam, DLP and more
- Runs on FortiOS 5 — the most powerful security operating system in the world delivers more protection for fighting advanced threats and visibility with deep contextual information
- Reliable internal storage for logging, reporting, web caching and WAN optimization
| Key Features & Benefits | |
|---|---|
| Unified Security | Multi-threat protection from a single device increases security and lowers costs. |
| Simplified Licensing | Unlimited user licensing and comprehensive features. |
| Built-in Storage | Allows implementation of WAN optimization and web cache, as well as extensive internal logging and reporting. |

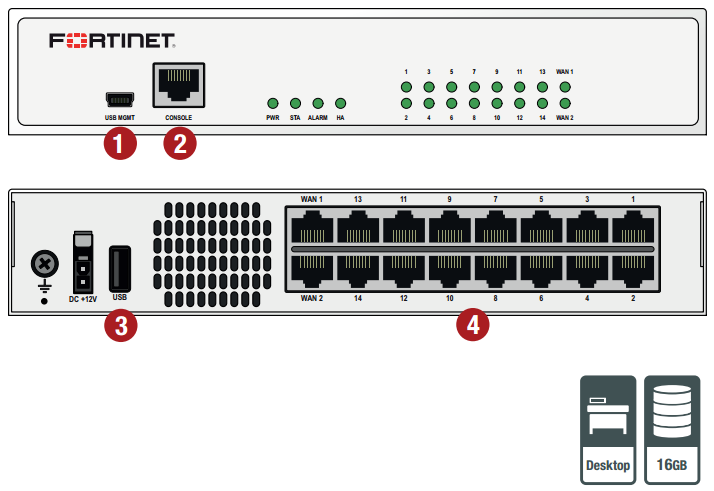

Hardware:
Interfaces
- USB Management Port
- Console Port
- USB Port
- 16x GE RJ45 Ports
Install in Minutes with FortiExplorer
The FortiExplorer wizard enables you to easily and quickly set up and configure FortiGate platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.
3G/4G WAN Connectivity
The FortiGate/FortiWiFi 92D includes USB ports that allow you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.
Compact and Reliable Form Factor
Designed for small environments, you can simply place the FortiGate/FortiWiFi 92D on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.
Superior Wireless Coverage
A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 92D and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dual-band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.
Built-in Fan
The FortiGate/FortiWiFi 92D comes with a built-in fan for additional reliability and is suitable for enclosed environment.
Software:
FortiOS
Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.
- A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
- Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
- Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
- Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
- Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
- Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.
Services:
FortiGuard Security Services
FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:
- Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
- Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
- Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.
FortiCare Support Services
Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:
- Enhanced Support — For customers who need support during local business hours only.
- Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
- Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
- Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.
Enterprise Bundle
FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.Specifications:
| FortiGate 92D | FortiWiFi 92D | |
|---|---|---|
| Hardware specifications | ||
| GE RJ45 Ports | 16 | 16 |
| USB Ports | 2 | 2 |
| Console (RJ45) | 1 | 1 |
| Wireless Interface | – | 802.11 a/b/g/n |
| Internal Storage | 16 GB | 16 GB |
| System Performance | ||
| Firewall Throughput | 2.0 Gbps | |
| Firewall Latency (64 byte UDP Packets) | 46 μs | |
| Firewall Throughput (Packets Per Second) | 300 Kpps | |
| Concurrent Sessions (TCP) | 1.5 Million | |
| New Sessions/Sec (TCP) | 22,000 | |
| Firewall Policies | 5,000 | |
| IPSec VPN Throughput (512 byte Packets) | 130 Mbps | |
| Gateway-to-Gateway IPSec VPN Tunnels | 200 | |
| Client-to-Gateway IPSec VPN Tunnels | 1,000 | |
| SSL-VPN Throughput | 170 Mbps | |
| Concurrent SSL-VPN Users (Recommended Maximum) | 200 | |
| IPS Throughput (HTTP / Enterprise Mix) 1 | 950 / 260 Mbps | |
| SSL Inspection Throughput 2 | 240 Mbps | |
| Application Control Throughput 3 | 320 Mbps | |
| NGFW Throughput 4 | 230 Mbps | |
| Threat Protection Throughput 5 | 200 Mbps | |
| CAPWAP Throughput 6 | 1.2 Gbps | |
| Virtual Domains (Default / Maximum) | 10 / 10 | |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 | |
| Maximum Number of FortiTokens | 100 | |
| Maximum Number of Registered FortiClients | 200 | |
| High Availability Configurations | Active / Active, Active / Passive, Clustering | |
| Dimensions | ||
| Height x Width x Length (inches) | 1.61 x 7.05 x 8.50 | |
| Height x Width x Length (mm) | 41 x 179 x 216 | |
| Form Factor | Desktop | |
| Weight | 1.36 lbs (3.0 kg) | |
| Environment | ||
| Power Required | 100–240V AC, 50–60 Hz | |
| Maximum Current | 110V / 2.54A, 220V / 1.27A | |
| Power Consumption (Average / Maximum) | 27.7 W / 36.4 W | |
| Heat Dissipation | 124.2 (BTU/h) | |
| Operating Temperature | 32–104°F (0–40°C) | |
| Storage Temperature | -31–158°F (-35–70°C) | |
| Humidity | 20–90% non-condensing | |
| Noise Level | 38.8 at 25°C @ 1m (Maximum: 40 dB at 25°C) | |
| Operating Altitude | Up to 7,400 ft (2,250 m) | |
| Compliance | ||
| FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB | ||
| Certifications | ||
| ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN | ||
Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
Rackmount:
The RM-FR-T7 is a rack mount kit for the FortiGate 70D, the second generation of the FortiGate 90D, the 92D, 90E and 91E.. The rack mount kit makes your FortiGate 70D, FortiGate 90D, FortiGate 92D, FortiGate 90E and FortiGate 91E fit in a 19" Rack. The RM-FR-T7 has all the RJ45 connections from the rear on the front panel, including the console connection. The rack mount kit matches the color of the FortiGate: RAL 9003 (white).
| Specifications | |
|---|---|
| Color | RAL 9003 Signal White |
| Height | 1U |
| Dimensions (height x width x depth) |
44 x 482 x 217mm |
| Number of connections brought to the front | 16 |
| Console port to the front | Yes |
| Cables | 16x 0.5m cables |
| Couplers | 16x RJ45 couplers |
| Supported Models | - FortiGate 70D - FortiGate 90D - FortiGate 92D - FortiGate 90E - FortiGate 91E |
| What's in the box | - 1x FortiRack + RJ45 couplers - Cables - Assembly materials - Installation guide |
| EAN | 8718868918024 |
| UPC | 852754006025 |
Documentation:
Download the Fortinet FortiGate and FortiWiFi 92D Series Datasheet (PDF).
