Fortinet FortiSwitch 1048E
Data Center Switches

Fortinet FortiSwitch 1048E

Fortinet Products
FortiSwitch 1048E Switch
FortiSwitch-1048E Layer 2/3 FortiGate switch controller compatible switch with 48 x GE/10GE SFP/SFP+ slots and 6 x 40GE QSFP+ or 4 x 100GE QSFP28. Dual AC power supplies
#FS-1048E
List Price: $40,547.00
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

FortiSwitch Data Center switches deliver outstanding throughput, resiliency and scalability for organizations with high performance data center network requirements. They are ideal for Top of Rack server or firewall aggregation applications, as well as enterprise network core or edge deployments, where high performance 10 GE and 40 GE is required. Purpose-built to meet needs of today’s bandwidth intensive data centers and enterprise networks, FortiSwitch Data Center Switches deliver highperformance with a low Total Cost of Ownership.

Security Fabric Integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate. This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users. In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Designed for Data Centers

Future-proofed 10 GE to satisfy the bandwidth requirements of intensive data center and network core applications and maximizes network availability with dual power supplies.

Highlights

  • High capacity switch suitable for Top of Rack or enterprise network deployments.
  • Maximum availability through dual hot swappable power supplies.
  • Simply management via a web-based or command line interface.
  • Switch security features protect vulnerable infrastructure without adding latency.
  • 1 GE or 10 GE access ports, in a compact 1 RU form factor.
  • 40 GE capability on the FortiSwitch-1048E.
Key Features & Benefits
10 GE Capability Future-proofed 10 GE to satisfy the bandwidth requirements of intensive data center and network core applications.
Dual Power Supply Units Maximizes network availability by eliminating the downtime associated with single power supplies.
Web and CLI Management Configuration and visibility into the network is made simple via a web-based interface or CLI.

Features:


  FortiSwitch 1024D, 1048E and 3032D
  Standalone Switch FortiLink Mode (FortiGate)
Security
802.1x Port Authentication Yes Yes
MAC Address-Based Authentication No Yes
MAC Black/White Listing No Yes
Layer 3,4 Stateful Firewall to Control Access No Yes
TACACS+/RADIUS Admin Access Yes Yes
DHCP Relay/DHCP Snooping No Yes
Virtual Domain No Yes
Routing
Layer 3, Dynamic Routing No Yes
Inter-VLAN Routing No Yes
Policy-Based Routing No Yes
DNS Server No Yes
VLANs Supported 4K 1K
Management
Auto Discovery of Multiple Switches 1 16 (model dependent)
Software Upgrade of Switches 1 switch Central upgrade of each switch
VLAN Configuration 1 switch Central VLAN provisioning of entire switch network
Policy Control of Users and Devices No Yes
Syslog Collection Yes Yes (FortiGate syslog only)
Switch POE Control Yes Yes**
LAG support from FortiSwitch to FortiGate Yes Yes**
High Availability
Support for FortiGate in HA cluster Yes Yes**
UTM Features
Firewall No Yes
IPS, AV, Application Control No Yes
** Roadmap: enabled with FOS 5.4 release
  FortiSwitch 1024D FortiSwitch 1048E FortiSwitch 3032D
Layer 2
Jumbo Frames Yes Yes Yes
IEEE 802.1D MAC Bridging/STP (compatibility mode) Yes Yes Yes
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP, compatibility mode) Yes Yes Yes
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) Yes Yes Yes
IEEE 802.1p Mapping to Priority Queue Yes Yes Yes
Spanning Tree Instances (MSTP/CST) 15/1 15/1 15/1
IEEE 802.1Q VLAN Tagging Yes Yes Yes
IEEE 802.3ad Link Aggregation with LACP Yes Yes Yes
Unicast/Multicast traffic balance over trunking port
(dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac)
Yes Yes Yes
IEEE 802.1AX Link Aggregation Yes Yes Yes
IEEE 802.3x Flow Control and back-pressure Yes Yes Yes
IEEE 802.3u 100Base-TX No No No
IEEE 802.3z 1000Base-SX/LX Yes Yes Yes
IEEE 802.3ab 1000Base-T Yes Yes No
802.3ae 10 Gigabit Ethernet Yes Yes Yes
802.3 CSMA/CD Access Method and Physical Layer Specifications Yes Yes Yes
Storm Control Yes Yes Yes
MAC, IP, Ethertype-based VLANS Yes Yes Yes
Virtual-Wire Yes Yes Yes
Private VLAN Yes Yes Yes
Layer 3
Static Routing (Hardware-based) Yes Yes Yes
Number of Direct Attached Hosts pv4=16K, ipv6=8K pv4=16K, ipv6=8K pv4=16K, ipv6=8K
Dynamic Routing No No No
L3 Host/ARP Entries 16K 16K 16K
Services
IGMP Snooping (v1/v2/v3) Please refer to the Release Notes.
Security
Port Mirroring Yes Yes Yes
Admin Authentication Via RFC 2865 RADIUS Yes Yes Yes
sFlow Yes Yes Yes
ACL Tables Yes, 2K entries Yes, 2K entries Yes, 2K entries
802.1x Authentication (Port and Mac-based) Yes Yes Yes
MAC-IP Binding Yes Yes Yes
Management
Telnet / SSH Yes Yes Yes
SNMP v1/v2c/v3 Yes Yes Yes
CLI and web GUI interface Yes Yes Yes
Managed from FortiGate Yes Yes Yes
Support for HTTP REST APIs for Configuration and Monitoring Yes Yes Yes
RFC and MIB Support
RFC 2571 Architecture for Describing SNMP Framework Yes Yes Yes
RFC 2131 DHCP Yes Yes Yes
RFC 854 TELNET Server Yes Yes Yes
RFC 2865 RADIUS Yes Yes Yes
RFC 1643 Ethernet-like Interface MIB Yes Yes Yes
RFC 3176 sFlow No No No
RFC 1213 MIB-II Yes Yes Yes
RFC 1354 IP Forwarding Table MIB Yes Yes Yes
RFC 2572 SNMP Message Processing and Dispatching Yes Yes Yes
RFC 1573 SNMP MIB II Yes Yes Yes
RFC 1157 SNMPv1/v2c Yes Yes Yes
RFC 2030 SNTP Yes Yes Yes

* Tested with Solarwinds NPM tool. Please refer to FortiSwitch Admin Guide for details on setup.

Deployment:

FortiLink Mode

The FortiSwitch Secure Access Switch series integrates directly into the FortiGate* Connected UTM, with switch administration and access port security managed from the familiar FortiGate interface. Regardless of how users and devices connect to the network, you have complete visibility and control over your network security and access through this single pane of glass, perfectly suited to threatconscious organizations of any size.

FortiLink Mode

* Selected models only

Standalone Mode

Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements in the data center, pushing the limits of existing data center switching. FortiSwitch Data Center switches meet these challenges by providing a high performance 10 or 40 GE capable switching platform, with a low Total Cost of Ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as enterprise network core or distribution deployments, these switches are purpose-built to meet the needs of today’s bandwidth intensive environments.

Standalone Mode

Specifications:

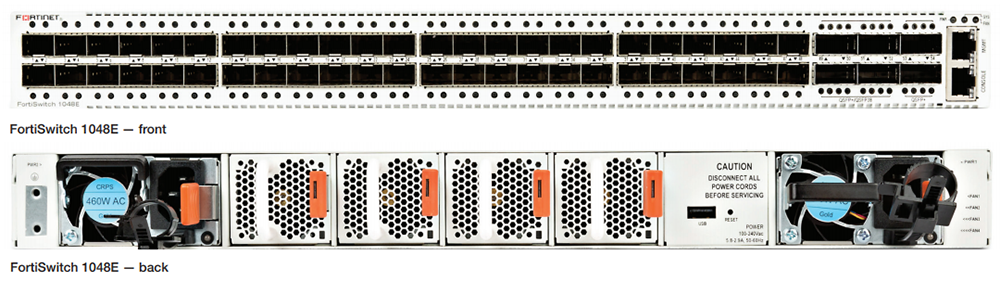

FortiSwitch 1048E Front and Rear

  FortiSwitch 1048E FortiSwitch 2048F FortiSwitch 3032E
Hardware Specifications
Total Network Interfaces 48x 10G/1G SFP+/SFP ports and
6x 40G QSFP+ ports or
4x 100G/40G QSFP28/QSFP+ ports
48x 25G/10G/1G SFP28/SFP+/SFP ports and
2x 10G/1G SFP+/SFP ports and
8x 100G/40G QSFP28/QSFP+ ports
32x 100G/40G QSFP28/QSFP+ ports
10/100/1000 Service Ports 1 1 1
RJ-45 Serial Console Port 1 1 1
Form Factor 1 RU Rack-Mount Appliance 1 RU Rack-Mount Appliance 1 RU Rack-Mount Appliance
System Specifications
Switch Capacity (Duplex) 1760 Gbps 4000 Gbps 6400 Gbps
Packets Per Second (Duplex) 64 bytes 1518 Mpps 4000 Mbps 5952 Mbps
MAC Address Storage 144k 96k 72k
Network Latency < 800 ns < 1us < 1us
VLANs Supported 4k 4k 4k
Link Aggregation Group Size up to 48 up to 48 up to number of ports
Total Link Aggregation Groups up to number of ports up to number of ports up to number of ports
Queues/Port 8 8 8
Packet Buffers 12 MB 32 MB 16 MB
Memory 8GB DDR3 8GB DDR4 8GB DDR3
Flash 128MB NOR 8GB NAND 128MB NOR
Drive 128GB SSD 32GB SSD 128GB SSD
Dimensions
Height x Depth x Width (inches) 1.69 x 18.11 x 17.26 1.71 x 18.11 x 17.26 1.69 x 18.11 x 17.26
Height x Depth x Width (mm) 43 x 460 x 438.5 43.5 x 460 x 438.5 43 x 460 x 438.5
Weight 18.96 lbs (8.6 kg) 21.78 lbs (9.88 kg) 19.34 lbs (8.77 kg)
Environment
Power Required 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Power Consumption (AVG) up to 181.7 W 175.7 W up to 463.8 W
Power Supply Dual hot swappable AC Dual hot swappable AC Dual hot swappable AC
Heat Dissipation 620.4 BTU/h 406 BTU/h 1582.5 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -4°F to 158°F (-20°C to 70°C) -13–158°F (-25–70°C) -4°F to 158°F (-20°C to 70°C)
Humidity 10–90% RH non-condensing 10–90% RH non-condensing 10–90% RH non-condensing
Air Flow Front to back Front to back Front to back
Noise Level 59 dBA 69.36 dBA 69.1 dBA
Mean Time Between Failures > 10 years > 10 years > 10 years
Certification and Compliance
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Fortinet Warranty Limited lifetime warranty on all models

Documentation:

Download the Fortinet FortiSwitch Data Center Series Datasheet (PDF).

It appears you don't have a PDF plugin for this browser. No biggie... you can click here to download the PDF file.

Pricing Notes:

Fortinet Products
FortiSwitch 1048E Switch
FortiSwitch-1048E Layer 2/3 FortiGate switch controller compatible switch with 48 x GE/10GE SFP/SFP+ slots and 6 x 40GE QSFP+ or 4 x 100GE QSFP28. Dual AC power supplies
#FS-1048E
List Price: $40,547.00
Our Price: Request a Quote
FortiSwitch 1048E FortiCare Premium Support
FortiSwitch-1048E 1 Year FortiCare Premium Support
#FC-10-1E48F-247-02-12
List Price: $3,903.00
Our Price: Request a Quote
FortiSwitch-1048E 3 Year FortiCare Premium Support
#FC-10-1E48F-247-02-36
List Price: $11,709.00
Our Price: Request a Quote
FortiSwitch-1048E 5 Year FortiCare Premium Support
#FC-10-1E48F-247-02-60
List Price: $19,515.00
Our Price: Request a Quote
FortiSwitch 1048E FortiCare Elite Support
FortiSwitch-1048E 1 Year FortiCare Elite Support
#FC-10-1E48F-284-02-12
List Price: $5,855.00
Our Price: Request a Quote
FortiSwitch-1048E 3 Year FortiCare Elite Support
#FC-10-1E48F-284-02-36
List Price: $17,564.00
Our Price: Request a Quote
FortiSwitch-1048E 5 Year FortiCare Elite Support
#FC-10-1E48F-284-02-60
List Price: $29,273.00
Our Price: Request a Quote
Fortinet FortiLAN Cloud Management FortiSwitch 1000 Series and Above
FortiLAN Cloud Management 1 Year FortiSwitch 1000 Series and Above FortiLAN Cloud Management SKU Including FortiCare Premium (Note, FortiCare only applicable when used with FortiLAN Cloud)
#FC-10-FSW30-628-02-12
List Price: $1,767.00
Our Price: Request a Quote
FortiLAN Cloud Management 3 Year FortiSwitch 1000 Series and Above FortiLAN Cloud Management SKU Including FortiCare Premium (Note, FortiCare only applicable when used with FortiLAN Cloud)
#FC-10-FSW30-628-02-36
List Price: $5,302.00
Our Price: Request a Quote
FortiLAN Cloud Management 5 Year FortiSwitch 1000 Series and Above FortiLAN Cloud Management SKU Including FortiCare Premium (Note, FortiCare only applicable when used with FortiLAN Cloud)
#FC-10-FSW30-628-02-60
List Price: $8,837.00
Our Price: Request a Quote
FortiSwitch-1048E Upgrade FortiCare Premium to Elite
FortiSwitch-1048E 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)
#FC-10-1E48F-204-02-12
List Price: $1,952.00
Our Price: Request a Quote
FortiSwitch-1048E 3 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)
#FC-10-1E48F-204-02-36
List Price: $5,855.00
Our Price: Request a Quote
FortiSwitch-1048E 5 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)
#FC-10-1E48F-204-02-60
List Price: $9,758.00
Our Price: Request a Quote
