Fortinet FortiVoice FVG-GS24
Expand Phone System Resources
Fortinet Products
FortiVoice FVG-GS24

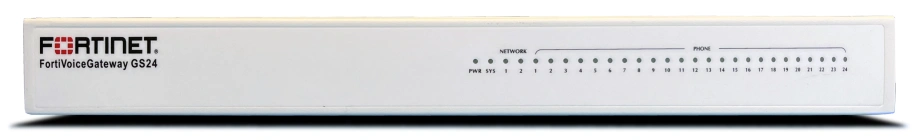

FortiVoice FVG-GS24 - FortiVoice Gateway GS24, 2x 10/100 ports, 24x FXS voice gateway
FortiVoice FVG-GS24
FortiVoice FVG-GS24 - FortiVoice Gateway GS24, 2x 10/100 ports, 24x FXS voice gateway - 1 Year 24x7 FortiCare Contract
FortiVoice FVG-GS24 - FortiVoice Gateway GS24, 2x 10/100 ports, 24x FXS voice gateway - 3 Year 24x7 FortiCare Contract
FortiVoice FVG-GS24 - FortiVoice Gateway GS24, 2x 10/100 ports, 24x FXS voice gateway - 5 Year 24x7 FortiCare Contract
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The FortiVoice Gateway works in conjunction with your FortiVoice phone system to expand the resources and connect different line types to the system. The gateways are supported on the FortiVoice Enterprise systems, FVE-100E, and larger.
The FortiVoice Gateway solution provides ease of support for additional phone lines or analog extensions. The compact design and simple configuration makes growing your network a snap, and with the stackable design you can add as many gateways as you need now or later on as you grow. Gateways can be installed locally or remotely to provide scalable solutions for on-premises networks or centralized deployments.
Highlights
- Compact design
- Dual LANs
- Easy connections
- Ease of configuration
- Secure audio
Features and Benefits:
| FEATURE | DESCRIPTION |
|---|---|
| Compact Design | The compact design of the gateways allows additional devices to be connected on the network. |
| Dual LANs | With dual network connections, it ensures devices remain available even if one connection goes down. |
| Easy Connections | Standard RJ-11 connections make it easy to plug lines or cables. |
| Ease of Configuration | Simplified and centralized configuration through FortiVoice web management. |
| Secure Audio | With SRTP, all calls are encrypted for maximum security. |
| PRI (T1/E1) | Supports PRI T1, PRI E1, and R2 protocols in both single and dual port configurations. |
| FXO | Supports standard incoming PSTN lines incorporating regional and country dial plans. |
| FXS | Supports standard analog phones or fax machines, enabling use of current hardware with newer technology. |
| Caller ID | Supports Bellcore, ETSI, and DTMF Caller ID formats. |
| Fax / T.38 | Supports T.38 for faxing over IP. |
Specifications:
| Category | FVG-GS04 | FVG-GS16 | FVG-GS24 | FVG-GO04 | FVG-GT01 | FVG-GT02 |
|---|---|---|---|---|---|---|
| Analog Extensions (FXS) | 4 | 16 | 24 | — | — | — |
| Traditional Telephone Lines (FXO) | — | — | — | 4 | — | — |
| PRI (T1/E1) | — | — | — | — | 1 | 2 |
| Network Interfaces (RJ45) | 2 | 2 | 2 | 2 | 2 | 2 |
| Hardware Form Factor | Desktop | Desktop | Rack mount (1U) | Desktop | Rack mount (1U) | Rack mount (1U) |
| Dimensions (inches) | 1.13 x 4.52 x 6.7 | 1.38 x 6.10 x 13.6 | 1.75 x 17 x 9.25 | 1.13 x 4.52 x 6.7 | 1.75 x 17 x 9.25 | 1.75 x 17 x 9.25 |
| Dimensions (mm) | 35 x 115 x 170 | 35 x 155 x 345 | 44.4 x 234.9 x 431.8 | 35 x 115 x 170 | 44.4 x 234.9 x 431.8 | 44.4 x 234.9 x 431.8 |
| Weight | 1.54 lbs (0.7 kg) | 2 lbs (0.91 kg) | 10 lbs (4.5 kg) | 1.54 lbs (0.7 kg) | 10 lbs (4.5 kg) | 10 lbs (4.5 kg) |
| Voice QoS | ||||||
| 802.1Q VLAN | ||||||
| SIP over TLS | ||||||
| SRTP | ||||||
| SNMP | ||||||
| Fax over VoIP | ||||||
| T.38 | ||||||
| Command Line Interface | ||||||
| Web Interface | ||||||
| Codecs | G.711 u-law/A-law, G.729a, G.722, G.726 | |||||
| DTMF | Inband, RFC2883, SIP info | |||||
Documentation:
Download the Fortinet FortiVoice Datasheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Hardware plus FortiCare Premium
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades - FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades - Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
