Fortinet FortiVoiceGateway-GS04
Expand Phone System Resources
Click here to jump to more pricing!
Please Note: All Prices are Inclusive of GST
Overview:
The FortiVoice Gateway works in conjunction with your FortiVoice phone system to expand the resources and connect different line types to the system. The gateways are supported on the FortiVoice Enterprise systems, FVE-100E, and larger.
The FortiVoice Gateway solution provides ease of support for additional phone lines or analog extensions. The compact design and simple configuration makes growing your network a snap, and with the stackable design you can add as many gateways as you need now or later on as you grow. Gateways can be installed locally or remotely to provide scalable solutions for on-premises networks or centralized deployments.
Highlights
- Compact design
- Ease of configuration
- Dual LANs
- Easy Connections
- Secure Audio
Features & Benefits:
Compact Design
The compact design of the gateways allows additional devices to be connected on the network.
Dual LANs
With dual network connections, it ensures devices will always be available even if a network connection goes down.
Easy Connections
Using standard RJ-11 connections makes it easy to plug lines or cables.
Ease of Configuration
Simplified and centralized configuration through FortiVoice web management.
Secure Audio
With SRTP, all calls are encrypted for maximum security.
PRI (T1/E1)
Supports both PRI T1, PRI E1 and R2 protocols in both single and dual port configurations.
FXO
Supports standard incoming PSTN lines incorporating regional and country dial plans.
FXS
Supports standard analog phones or fax machines allowing you to use your current hardware with newer technology.
Caller ID
Supports Bellcore, ETSI and DTMF Caller ID formats.
Fax / T.38
Supports T.38 for faxing over IP.

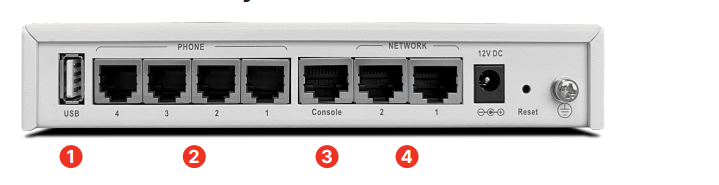

Specifications:
- 1x USB Port
- 4 x Analog Extension (FXS)
- 1x Console Port
- 2 x 10/100 RJ45 Ports
| FortiVoice Gateway GS04 | FortiVoice Gateway GS16 | |
|---|---|---|
| Hardware Specifications | ||
| Analog Extensions (FXS) | 4 | 16 |
| Traditional Telephone Lines (FXO) | – | - |
| PRI (T1/E1) | – | – |
| Network Interface Cards (RJ45) | 2 | 2 |
| Hardware Form Factor | Desktop | Desktop |
| Dimensions | ||
| Height x Width x Length (inches) | 1.13 x 4.52 x 6.7 | 1.38 x 6.10 x 13.6 |
| Height x Width x Length (mm) | 35 x 115 x 170 | 35 x 155 x 345 |
| Weight | 1.54 lbs (0.7 kg)) | 2 lbs (0.91 kg) |
| Advanced Network Features | ||
| Voice QoS | ||
| 802.1 Q VLAN | ||
| SIP over TLS | ||
| SRTP | ||
| SNMP | ||
| Fax over VoIP | ||
| T.38 | ||
| Management | ||
| Command Line Interface | ||
| Web Interface | ||
| Voice | ||
| Codecs | G.711 u-law/A-law, G.729a, G.722, G.726 | |
| DTMF | Inband, RFC2883, SIP info | |
Documentation:
Download the Fortinet FortiVoice Gateway Data Sheet (PDF).
Pricing Notes:
- All Prices are Inclusive of GST
- Hardware plus FortiCare Premium
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades - FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades - Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
