Rackmount.IT RM-FR-T15I
Shielded Rack Mount Kit for FortiGate 80F / 81F
Rackmount.IT Products
RM-FR-T15I Base UnitBack to top
RM-FR-T15I
Shielded 1U rack mount kit for FortiGate 80F and 81F. Brings 14 connections to the front including fiber and console. Includes 12x 0.5m shielded cables, 10x RJ45, 1x USB and 2x fiber couplers.
Shielded 1U rack mount kit for FortiGate 80F and 81F. Brings 14 connections to the front including fiber and console. Includes 12x 0.5m shielded cables, 10x RJ45, 1x USB and 2x fiber couplers.
#RM-FR-T15I
Our Price: Request a Quote
Our Price: Request a Quote
Overview:

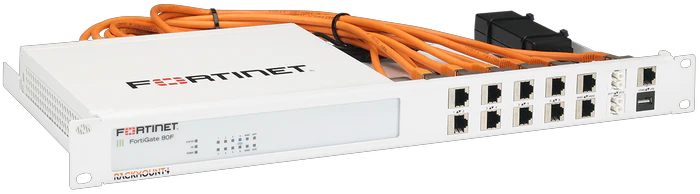

The RM-FR-T15I offers a purpose-built shielded rackmount solution for the FortiGate 80F and 81F, featuring fiber-compatible keystones and full front-panel access to all connections.

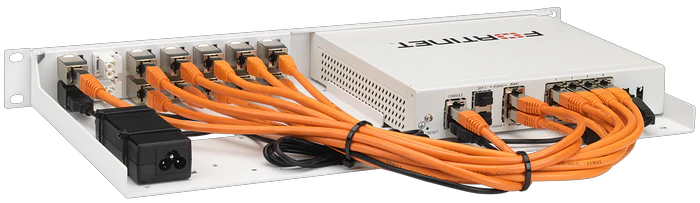

Designed to achieve a snug, secure fit for the FortiGate 80F and 81F appliances, the RM-FR-T15I routes all 14 connections — including two fiber SFP ports and the console port — to the front of the rack. The shielded cables provide EMI/RFI protection, making this kit a strong choice for data centres and other environments sensitive to electromagnetic interference. The power supply is fixed securely to the rack frame to safeguard against unintended power interruptions.
Installation requires no special tools and can be completed in under three minutes: slide the appliance into the bracket, secure it with the provided retainers, connect the included cables to the keystones, and fasten the power supply.
Key Highlights
- Shielded Cables — EMI/RFI-protected cabling for interference-sensitive environments
- Fiber Keystones — Two fiber couplers for SFP connectivity from the front
- 14 Front Connections — Full front-panel access to all ports and console
- Secure Power Attachment — Power supply mounted to the rack frame
- Quick Assembly — Complete installation in under 3 minutes
- Precision Fit — Custom engineered for the FortiGate 80F and 81F
Compatible Models
- FortiGate 80F
- FortiGate 81F
Image Views:
Specifications:
| RM-FR-T15I Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | RM-FR-T15I |
| Compatible Models | FortiGate 80F, FortiGate 81F |
| Color | RAL 9003 Signal White |
| Height | 1U |
| Dimensions (H × W × D) | 1.73 × 19 × 8.5 in. (44 × 483 × 216 mm) |
| Connections Brought to Front | 14 |
| Console Port to Front | Yes |
| Cables Included | 12× 0.5m shielded cables |
| Couplers Included | 10× RJ45 + 1× USB + 2× Fiber |
| Cable Type | Shielded (EMI/RFI protected) |
| What's in the Box |
|
Documentation:
Download the RM-FR-T15I Data Sheet (PDF).
