Rackmount.IT RM-FR-T18I
Shielded Rack Mount Kit for FortiGate 80F-POE / 81F-POE (DSL & FortiWifi)
Rackmount.IT Products
RM-FR-T18I Base UnitBack to top
RM-FR-T18I
Shielded 2U rack mount kit for FortiGate 80F-POE and 81F-POE including DSL and FortiWifi models. Brings 14 connections to the front. Includes 12x 0.5m shielded cables, 11x RJ45, 1x USB and 2x fiber couplers.
Shielded 2U rack mount kit for FortiGate 80F-POE and 81F-POE including DSL and FortiWifi models. Brings 14 connections to the front. Includes 12x 0.5m shielded cables, 11x RJ45, 1x USB and 2x fiber couplers.
#RM-FR-T18I
Our Price: Request a Quote
Our Price: Request a Quote
Overview:
The RM-FR-T18I combines the 2U mounting footprint required by the FortiGate 80F-POE and 81F-POE with shielded cabling for full EMI/RFI protection — ideal for high-density data centres and noise-sensitive environments.
Custom-designed for the FortiGate 80F-POE, 81F-POE and their DSL and WiFi variants, the RM-FR-T18I routes all 14 connections — including two fiber SFP keystones and the console port — to the front of the rack. The shielded cable assembly guards against electromagnetic interference throughout, while the secure power bracket keeps the adapter firmly in place during operation. WiFi, 3G, 4G and 5G antenna models are supported.
Full installation typically takes fewer than three minutes: slide the appliance into the kit, secure with the provided retainers, route the shielded cables to the keystones, and attach the power supply to the rack.
Key Highlights
- Shielded Cables — Full EMI/RFI protection throughout the installation
- 2U Form Factor — Properly accommodates the POE series chassis
- Fiber Keystones — Two front-accessible fiber couplers
- 14 Front Connections — All ports and console accessible from the front
- Wireless Antenna Support — Fits WiFi, 3G, 4G and 5G models
- Rapid Assembly — Full installation in under 3 minutes
Compatible Models
- FortiGate 80F-POE
- FortiGate 81F-POE
- DSL and FortiWifi variants of the above

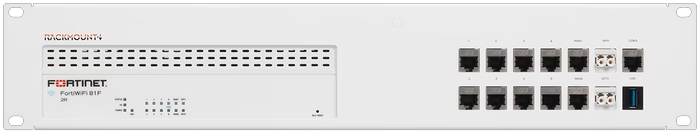

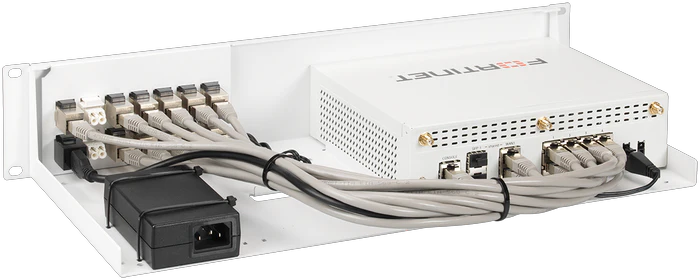

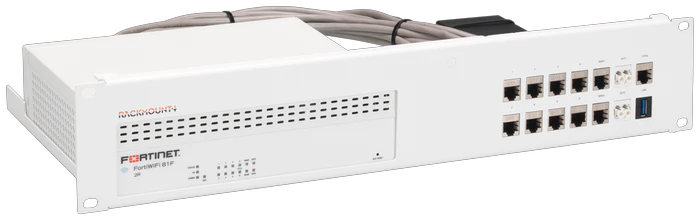

Image Views:
Specifications:
| RM-FR-T18I Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | RM-FR-T18I |
| Compatible Models | FortiGate 80F-POE, FortiGate 81F-POE (incl. DSL & FortiWifi variants) |
| Color | RAL 9003 Signal White |
| Height | 2U |
| Dimensions (H × W × D) | 3.48 × 19 × 8.5 in. (88.4 × 483 × 216 mm) |
| Connections Brought to Front | 14 |
| Console Port to Front | Yes |
| Cables Included | 12× 0.5m shielded cables |
| Couplers Included | 11× RJ45 + 1× USB + 2× Fiber |
| Cable Type | Shielded (EMI/RFI protected) |
| WiFi / Antenna Support | Fits WiFi, 3G, 4G and 5G models |
| What's in the Box |
|
Documentation:
Download the RM-FR-T18I Data Sheet (PDF).
