Rackmount.IT RM-FR-T22
Dual Rack Mount Kit for FortiGate 80F-PoE / 81F Series (DSL & FortiWifi)

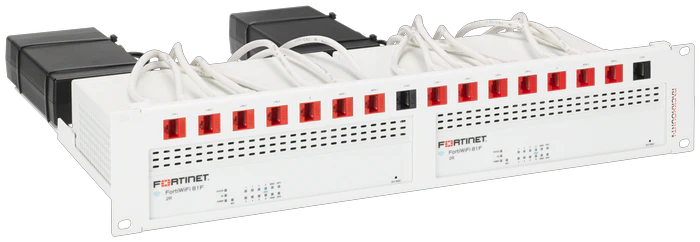

Rackmount.IT RM-FR-T22 Dual Rack Mount Kit

Rackmount.IT Products

RM-FR-T22 Base UnitBack to top

RM-FR-T22
2U dual-unit rack mount kit for two FortiGate 80F or 81F appliances (incl. DSL and FortiWifi variants). Brings 16 connections to the front. Includes 16x 0.5m cables and 16x RJ45 couplers.

#RM-FR-T22
Our Price: Request a Quote

Request a Quote

Overview:

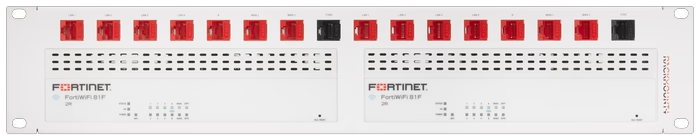

The RM-FR-T22 accommodates two FortiGate 80F or 81F appliances side by side in a 2U rack space, bringing all 16 connections to the front for a consolidated, manageable installation.

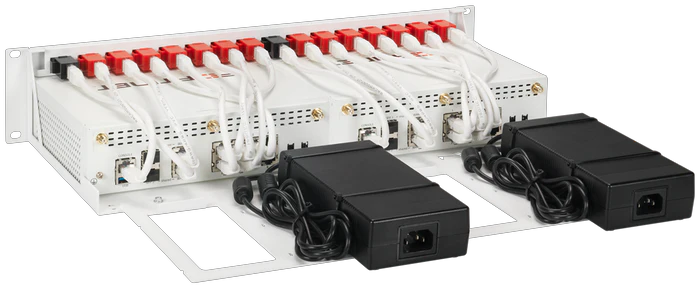

Engineered for dual-device deployments, the RM-FR-T22 houses two FortiGate 80F, 80F-DSL, FortiWiFi 80F-2R, FortiGate 81F or FortiWiFi 81F-2R appliances (including 3G/4G/DSL variants) within a single 2U rack slot. All 16 RJ45 connections from both appliances are routed to the front panel, keeping the rack rear clean and simplifying day-to-day management. The included 16 patch cables and keystone couplers enable a neat, structured cabling approach. Power supplies for each unit are independently secured to the rack frame.

Assembly takes fewer than three minutes per unit: slide each appliance in, secure the retainers, connect the cables to the keystones, and fix the power supplies.

Key Highlights

Dual-Unit Capacity — Houses two FortiGate 80F or 81F series units in 2U
16 Front Connections — All RJ45 ports from both units at the front
16 Cables Included — Complete patch cable set for both units
Wide Compatibility — Supports DSL, FortiWifi, 3G/4G variants
Independent Power Security — Separate rack-mounted power brackets
Quick Assembly — Under 3 minutes per unit

Compatible Models

FortiGate 80F / 80F-DSL
FortiWiFi 80F-2R / 80F-2R-3G4G-DSL
FortiGate 81F
FortiWiFi 81F-2R / 81F-2R-3G4G-DSL

Image Views:

Specifications:

RM-FR-T22 Specifications
Manufacturer	Rackmount.IT
Model	RM-FR-T22
Compatible Models	FortiGate 80F / 80F-DSL, FortiWiFi 80F-2R / 80F-2R-3G4G-DSL, FortiGate 81F, FortiWiFi 81F-2R / 81F-2R-3G4G-DSL (two units)
Unit Capacity	2 firewalls
Color	RAL 9003 Signal White
Height	2U
Dimensions (H × W × D)	3.48 × 19 × 8.5 in. (88.4 × 483 × 216 mm)
Connections Brought to Front	16 (combined across both units)
Console Port to Front	Yes
Cables Included	16× 0.5m cables
Couplers Included	16× RJ45
What's in the Box	1× FortiRack with couplers 16× 0.5m cables Assembly materials Installation guide

Documentation:

Download the RM-FR-T22 Data Sheet (PDF).
