Rackmount.IT RM-FR-T24
Rack Mount Kit for FortiGate Rugged 70F
Rackmount.IT Products
RM-FR-T24 Base UnitBack to top
RM-FR-T24
2U rack mount kit for the FortiGate Rugged 70F. Console port brought to the front. Supports WiFi, 3G, 4G and 5G antenna models. Direct-connection design — no cables or couplers included.
2U rack mount kit for the FortiGate Rugged 70F. Console port brought to the front. Supports WiFi, 3G, 4G and 5G antenna models. Direct-connection design — no cables or couplers included.
#RM-FR-T24
Our Price: Request a Quote
Our Price: Request a Quote
Overview:
The RM-FR-T24 delivers a secure 2U rack mounting solution purpose-built for the FortiGate Rugged 70F, accommodating its wider chassis and supporting wireless antenna configurations.
Custom-engineered for the FortiGate Rugged 70F, the RM-FR-T24 provides a precise, snug fit within a standard 19-inch rack in a 2U footprint. The console port is routed to the front panel for convenient management access. Wireless, 3G, 4G and 5G antenna variants are supported without requiring any chassis modifications. The direct-connection design keeps the installation clean and straightforward — no cables or couplers are required. The power supply secures firmly to the rack frame to prevent unintended power interruptions.
Assembly is simple and quick: slide the appliance into the bracket, fasten the retainers, and secure the power supply to the rack. Typical installation time is fewer than three minutes.
Key Highlights
- 2U Form Factor — Accommodates the FortiGate Rugged 70F's wider chassis
- Console Port to Front — Serial management from the rack front
- Wireless Antenna Support — Fits WiFi, 3G, 4G and 5G variants
- Direct Connection Design — No cables or couplers required
- Secure Power Attachment — Power supply secured to rack frame
- Rapid Assembly — Installation in under 3 minutes
Compatible Models
- FortiGate Rugged 70F

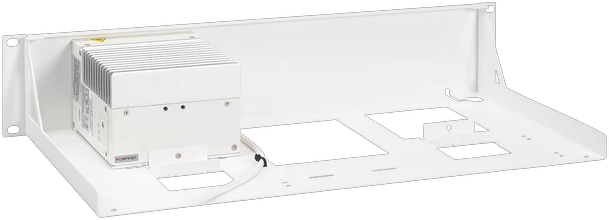

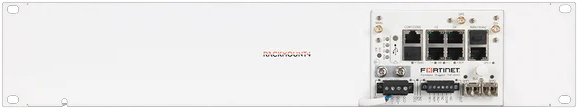

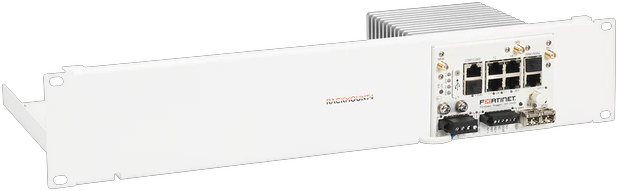

Image Views:
Specifications:
| RM-FR-T24 Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | RM-FR-T24 |
| Compatible Models | FortiGate Rugged 70F |
| Color | RAL 9003 Signal White |
| Height | 2U |
| Dimensions (H × W × D) | 3.48 × 19 × 8.5 in. (88.4 × 483 × 216 mm) |
| Console Port to Front | Yes |
| Cables Included | None (direct connection design) |
| Couplers Included | None |
| WiFi / Antenna Support | Fits WiFi, 3G, 4G and 5G models |
| What's in the Box |
|
