Rackmount.IT RM-FR-T26
Rack Mount Kit for FortiExtender 101F / 201F / 202F / 212F
Rackmount.IT Products
RM-FR-T26 Base UnitBack to top
RM-FR-T26
1U rack mount kit for FortiExtender 101F, 201F, 202F and 212F. Brings console port to the front. SMA antenna punch-out holes included. Direct-connection design — no cables or couplers.
1U rack mount kit for FortiExtender 101F, 201F, 202F and 212F. Brings console port to the front. SMA antenna punch-out holes included. Direct-connection design — no cables or couplers.
#RM-FR-T26
Our Price: Request a Quote
Our Price: Request a Quote
Overview:

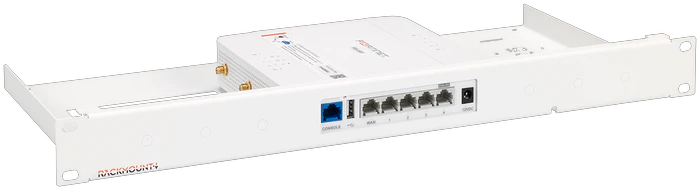

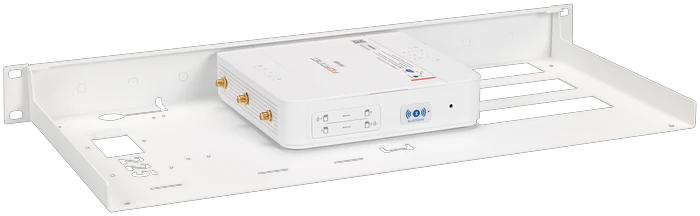

The RM-FR-T26 mounts the FortiExtender 101F, 201F, 202F and 212F in a standard 19-inch rack with a 1U profile, including SMA antenna punch-out holes to accommodate external antenna connections.
Purpose-built for the FortiExtender 101F, 201F, 202F and 212F appliances, the RM-FR-T26 provides a precise, secure fit within a standard rack. The console port is brought to the front for easy serial management access. SMA connector punch-out holes are pre-configured in the rack panel, allowing external antennas to be routed cleanly through the enclosure — SMA cables are not included and should be sourced separately. The power supply attaches securely to the rack frame to prevent accidental power loss.
Installation is straightforward: slide the appliance into the bracket, fasten the retainers, route the antenna cables through the punch-out holes if required, and secure the power supply. The process takes fewer than three minutes.
Key Highlights
- Compact 1U Profile — Efficient rack mounting for FortiExtender appliances
- Console Port to Front — Serial management from the rack front
- SMA Antenna Punch-Out Holes — Supports external antenna routing (SMA cables not included)
- Direct Connection Design — No keystone cables or couplers required
- Secure Power Attachment — Power supply bracket fixed to rack frame
- Wide FortiExtender Compatibility — Supports four FortiExtender F-series models
Compatible Models
- FortiExtender 101F
- FortiExtender 201F
- FortiExtender 202F
- FortiExtender 212F
Image Views:
Specifications:
| RM-FR-T26 Specifications | |
|---|---|
| Manufacturer | Rackmount.IT |
| Model | RM-FR-T26 |
| Compatible Models | FortiExtender 101F, 201F, 202F, 212F |
| Color | RAL 9003 Signal White |
| Height | 1U |
| Dimensions (H × W × D) | 1.73 × 19 × 8.5 in. (44 × 483 × 216 mm) |
| Console Port to Front | Yes |
| Antenna Support | SMA punch-out holes for antenna cable routing (SMA cable not included) |
| Cables Included | None (direct connection design) |
| Couplers Included | None |
| What's in the Box |
|
Documentation:
Download the RM-FR-T26 Data Sheet (PDF).
