Rackmount.IT RM-FR-T29
Rack Mount Kit for FortiGate 90G & FortiSwitch 108F

Rackmount.IT RM-FR-T29 Rack Mount Kit

Rackmount.IT Products

RM-FR-T29 Base UnitBack to top

RM-FR-T29
1U rack mount kit accommodating the FortiGate 90G and FortiSwitch 108F side by side in a single rack unit. Console port brought to the front. Includes 1 coupler. Direct-connection design.

#RM-FR-T29
Our Price: Request a Quote

Request a Quote

Overview:

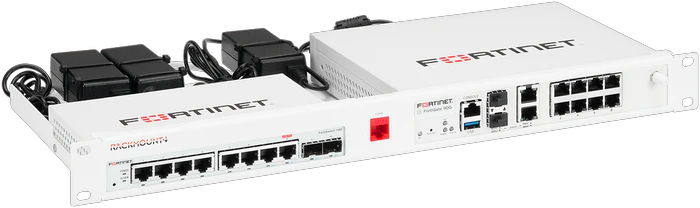

The RM-FR-T29 is a dual-device rack kit that mounts the FortiGate 90G and FortiSwitch 108F together in a single 1U rack space — ideal for compact branch or SD-Branch deployments.

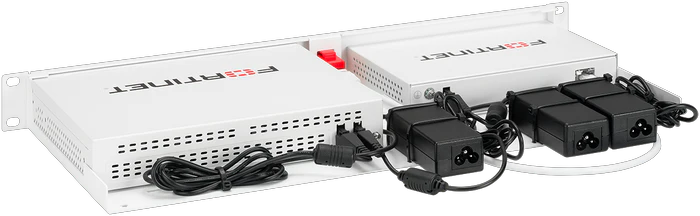

Engineered to house both the FortiGate 90G and the FortiSwitch 108F side by side within a single 1U rack unit, the RM-FR-T29 is particularly well-suited to SD-Branch configurations where the firewall and access switch are deployed as a paired solution. The console port is brought to the front of the rack for convenient serial management access. The included coupler facilitates a clean internal connection between the two devices. Both power supplies are secured independently to the rack frame to prevent accidental disconnection during operation.

Installation is quick: slide each appliance into its designated slot, fasten the retainers, connect the coupler, and secure the power supplies. Typical assembly time is fewer than three minutes.

Key Highlights

Dual-Device Capacity — Houses FortiGate 90G and FortiSwitch 108F in a single 1U space
SD-Branch Ready — Ideal paired mounting for firewall and access switch
Console Port to Front — Serial management from the rack front
Coupler Included — Enables clean internal device connection
Independent Power Security — Separate power brackets for each device
Compact 1U Profile — Maximises rack density

Compatible Models

FortiGate 90G
FortiSwitch 108F

Image Views:

Specifications:

RM-FR-T29 Specifications
Manufacturer	Rackmount.IT
Model	RM-FR-T29
Compatible Models	FortiGate 90G + FortiSwitch 108F (paired)
Color	RAL 9003 Signal White
Height	1U
Dimensions (H × W × D)	1.73 × 19 × 8.5 in. (44 × 483 × 216 mm)
Console Port to Front	Yes
Connections Brought to Front	1
Cables Included	None
Couplers Included	1× coupler
WiFi Support	Not applicable
What's in the Box	1× FortiRack + 1× coupler Assembly materials Installation guide

Documentation:

Download the RM-FR-T29 Data Sheet (PDF).

Pricing Notes:

All Prices are Inclusive of GST
Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) plus term of contract
Hardware plus FortiCare Premium and FortiGuard SMB Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract
Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service)
Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
FortiCare Essential Support
FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
FortiCare Elite Support
FortiCare Premium Support with FortiCare Elite Ticket Handling.
Prices are for one year of Premium RMA support. Usual discounts can be applied.
Annual contracts only. No multi-year SKUs are available for these services.
Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
Pricing and product availability subject to change without notice.
