Fortinet FortiExtender Accessories
Optimize wireless coverage and performance

Fortinet FortiExtender Accessories


Fortinet Products
FortiExtender Antenna Base Appliance

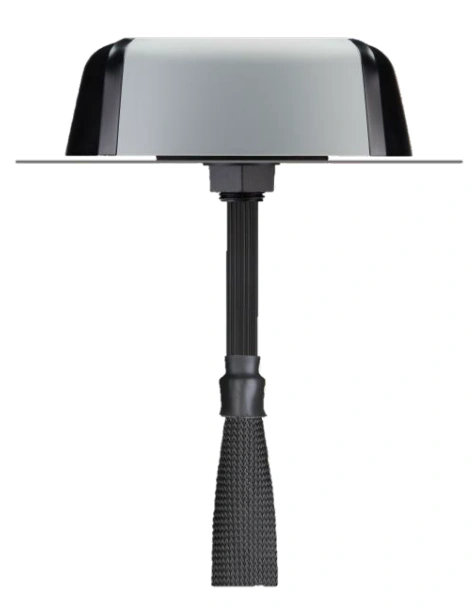

3-in-1 permanent vehicle roof mount antenna for FEV-211F and FEV-211F-AM. Outdoor waterproof antenna with 2x 5G/LTE + 1x active GNSS and 5 meter antenna cable with SMA male connectors.
#FANT‑3IN1‑TG‑5M‑FEV
Our Price: Request a Quote
5-in-1 outdoor, waterproof, permanent vehicle roof mount antenna for FEV-212F/-AM and FEV-511G with 4x 5G/LTE + 1x Active GNSS and a 5-meter antenna cable with 5x SMA male connectors.
#FANT‑5IN1‑TG‑5M‑FEV
Our Price: Request a Quote
7-in-1 outdoor, waterproof, permanent vehicle roof mount antenna for FEV-212F/-AM and FEV-511G with 4x 5G/LTE, 2x 2.4G/5G Wi-Fi, 1x Active GNSS and a 5-meter antenna cable with 2x RP-SMA male connectors for Wi-Fi + 5x SMA male connectors for 5G/LTE and GNSS connectivity.
#FANT‑7IN1‑TG‑5M‑FEV
Our Price: Request a Quote

Click here to jump to more pricing!

Please Note: All Prices are Inclusive of GST

Overview:

These antennas can help to optimize coverage and overall wireless performance in a range of installation settings. Antennas come in a variety of patterns and with various numbers of antenna elements to help installers find the best match for their equipment.

The FANT‑3IN1‑TG‑5M‑FEV is a three-in-one 5G/LTE/GNSS permanent mount antenna with 5m long low loss antenna cable for vehicle roof or fixed outdoor applications. It has a fully IP67 rated waterproof and weather robust Polycarbonate (PC) enclosure and base. The three antennas inside support 5G/4G LTE and GPS/GLONASS/BeiDou/Galileo. The FANT‑3IN1‑TG‑5M‑FEV delivers powerful MIMO antenna technology for 5G/4G LTE and an optimized patch antenna of GPS/GLONASS/BeiDou/Galileo for location positioning.

The FANT-5IN1-TG-5M-FEV is a 5-in-1 5G/4G-LTE/GNSS permanent mount antenna with 5m long low loss antenna cable for vehicle roof or fixed outdoor applications. It has a fully IP67 rated waterproof and weather robust Polycarbonate (PC) enclosure and base. The five antennas inside support 5G/4G LTE and GPS/GLONASS/BeiDou/Galileo. The FANT-5IN1-TG5M-FEV delivers powerful MIMO antenna technology for 5G/4G LTE and an optimized patch antenna of GPS/GLONASS/BeiDou/Galileo for location positioning.

The FANT-7IN1-TG-5M-FEV is a 7-in-1 5G/4G-LTE/Wi-Fi/GNSS permanent mount antenna with 5m long low loss antenna cable for vehicle roof or fixed outdoor applications. It has a fully IP67 rated waterproof and weather robust Polycarbonate (PC) enclosure and base. The 7 antennas inside support 5G/4G LTE, Wi-Fi and GPS/GLONASS/BeiDou/Galileo. The FANT-7IN1-TG-5MFEV delivers powerful MIMO antenna technology for 5G/4G LTE, an optimized patch antenna of GPS/GLONASS/BeiDou/Galileo for location positioning and Wi-Fi Client connectivity.

  • IP67 Rated Waterproof Enclosure
  • RoHS and REACH Compliant

Features:

FANT‑3IN1‑TG‑5M‑FEV

  • 2x 5G/4G LTE (600 MHz - 6 GHz) MIMO Antenna
  • 1x active GNSS antenna of GPS/ GLONASS/ BeiDou/ Galileo with front end SAW filter and low-noise amplifier
  • 5m long low loss and high efficiency/ peak gain outdoor antenna cable (300 mm RG-174 cable + 4700 mm TGC-200 cable) with SMA male connectors
  • IP67 Rated Waterproof Enclosure
  • RoHS and REACH Compliant

FANT-5IN1-TG-5M-FEV

  • 4 x 5G/4G LTE (600MHz - 6GHz) MIMO Antenna
  • 1 x active GNSS antenna of GPS/GLONASS/BeiDou/Galileo with front end SAW filter and low-noise amplifier
  • 5m long low loss and high efficiency/peak gain outdoor antenna cable (300mm RG-174LL cable + 4700mm TGC-200 cable) with SMA male connectors
  • IP67 Rated Waterproof Enclosure
  • RoHS and REACH Compliant

FANT-7IN1-TG-5M-FEV

  • 4x 5G/4G LTE (600MHz - 6GHz) MIMO Antenna
  • 2x Wi-Fi 2.4GHz/5.8GHz MIMO Antenna
  • 1x active GNSS antenna of GPS/GLONASS/BeiDou/Galileo with front end SAW filter and low-noise amplifier
  • 5m long low loss and high efficiency/peak gain outdoor antenna cable (RG-174 for GNSS and TGC-200 for 5G/LTE and Wi-Fi) with SMA male connectors and Wi-Fi with male RP-SMA
  • IP67 Rated Waterproof Enclosure
  • RoHS and REACH Compliant

Specifications:


Model FANT-3IN1-TG-5M-FEV FANT-5IN1-TG-5M-FEV FANT-7IN1-TG-5M-FEV
Mechanical
Height 57.47 mm 57.47 mm 57.47 mm
Planner Dimension Ø160 mm Ø160 mm Ø160 mm
Casing PC PC PC
Cable 0.3 m RG-174LL + 4.7 m TGC-200 (5G/4G – Customizable)
0.3 m RG-174LL + 4.7 m TGC-200 (GNSS – Customizable)
0.3 m RG-174LL + 4.7 m TGC-200 (5G/4G – Customizable)
0.3 m RG-174LL + 4.7 m TGC-200 (GNSS – Customizable)
5 m TGC-200 (5G/4G – Customizable)
5 m TGC-200 (Wi-Fi – Customizable)
5 m RG-174 (GNSS – Customizable)
Connector 5G/4G: SMA-Plug (Customizable)
GNSS: SMA-Plug (Customizable)
5G/4G: SMA-Plug (Customizable)
GNSS: SMA-Plug (Customizable)
5G/4G: SMA (M) (Customizable)
Wi-Fi: RP-SMA (M) (Customizable)
GNSS: SMA (M) (Customizable)
Thread 18.23 mm 18.23 mm 18.23 mm
Thread Diameter M22 M22 M22
Waterproof IP67 IP67 IP67
Sealant Rubber Stopper and O-Ring Rubber Stopper and O-Ring Rubber Stopper and O-Ring
Weight 2.7 kg 2.7 kg 2.5 kg
Environmental
Ingress Protection IP67 IP67 IP67
Temperature Range -40 °C to 85 °C -40 °C to 85 °C -40 °C to 85 °C
Humidity Non-condensing, 65 °C, 95% RH Non-condensing, 65 °C, 95% RH Non-condensing, 65 °C, 95% RH
Cable Pull RG-174: 4 kg RG-174: 4 kg RG-174: 4 kg
Mounting Vehicle roof mount
Outdoor wall/pole mount (with bracket, optional)
Roof mount
Wall/pole mount (with bracket, optional)
Roof mount
Wall/pole mount (with bracket, optional)

Documentation:

Download the FortiExtender Accessories Data Sheet (PDF).
